Aurea – 900 × 300 + 400 × 300 cm
- 39 m²
- 900 × 300 cm
- Flat roof
- €49,900 net
Personalised planning
Each module is designed to meet your requirements.
Transparent costs
Transparent pricing and open communication.
Production in Europe
Modular design manufactured in Europe.
Support right through to installation
From advice to installation, we’re right by your side.
Gallery
Floor plan & transport
Transport and installation are arranged on a project-by-project basis.
Technical Specifications
Area39 m²
Dimensions900 × 300 cm
Bedroom1
Roof shapeFlat roof
| Position | Description | Number |
|---|---|---|
| Dimensions | 900 × 700 cm, external area: 39 m², perimeter: 32 m | |
| Materials and equipment | Steel structure made from 100×50×3 mm rectangular tubing, internal steel frame with sheet metal cladding in black or white, unloading handles for a hydraulic loading crane or crane | |
| Roof | Pitched roof, internal height 230/240 cm | |
| Drainage system | drip edge | |
| Sandwich panel | Exterior colour: RAL 7016; roof and walls: 10 cm PIR insulation; U-value: 0.22 W/m²·K. Roof colour: RAL 7016. Floor: 12 cm sandwich panel, 15 mm OSB board. Skirting board: sheet metal or PVC. PVC flooring 0.3 mm, light brown or grey. | |
| Facade cladding | Facade cladding at the corners and joints of the modules, made from sheet metal with a wood-effect finish or in any RAL colour, or from premium WPC facade slats. | |
| Entrance door #1 | Aluminium with glazing, 110 x 210 cm, colour: RAL 7016 | 1 |
| Window #1 | Double-sash tilt-and-turn window with mullions, colour: RAL 7016, glazing: double glazing, specification: standard glass | 2 |
| Window #2 | Tilt-and-turn window 120 x 200 cm, colour: RAL 7016, glazing: double glazing, specification: standard glass | 1 |
| Window #3 | Tilt-and-turn window 50 x 50 cm, colour: RAL 7016, glazing: double glazing, specification: standard glass | 1 |
| Sockets #1 | Type F 230 V (PL) (Single: 4, Double: 9) | 13 |
| Electrical connections #1 | Three-phase connection (5 × 6 mm² cable) | 1 |
| Lighting #1 | Black ceiling lights | 6 |
| Lighting #2 | Outdoor wall lights | 1 |

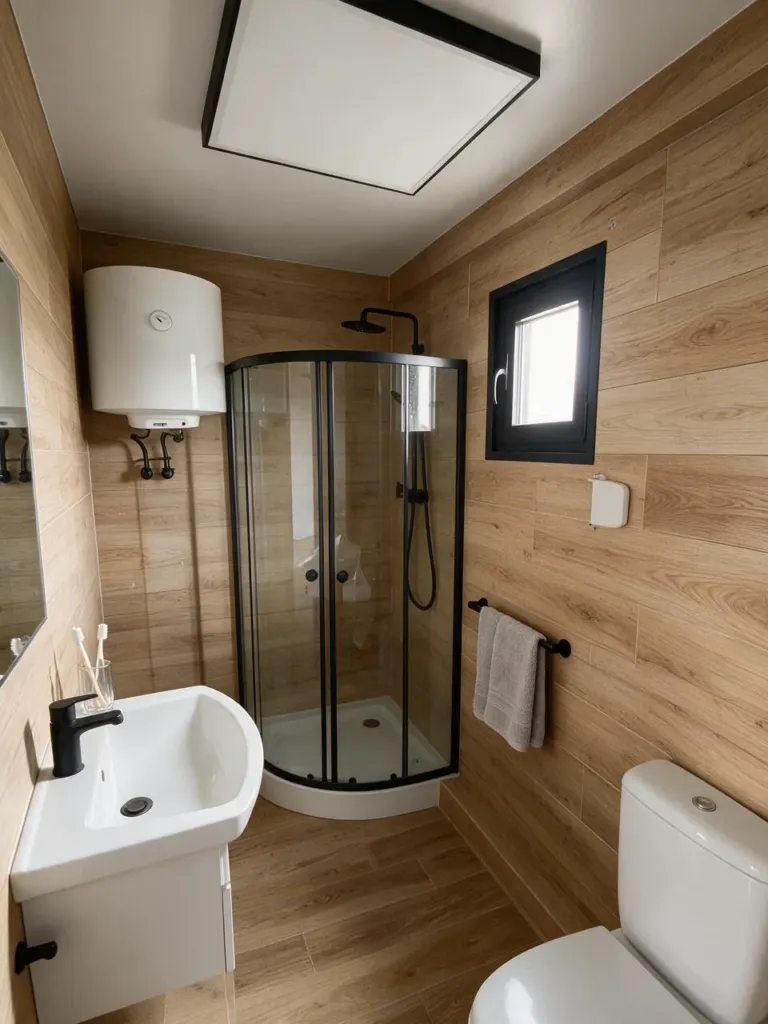

| Water and Wastewater Installation #1 | Bathroom: fitted with a washbasin including a vanity unit, a toilet, a shower cubicle and a 50-litre water heater. Full plumbing installation included. | 1 |
| External connections | In the floor or in the back wall | |
| Kitchen | Standard kitchen: comprising three 60 cm cupboards (wall-mounted and floor-standing), a 2-zone induction hob, a sink and a small fridge. Cupboards in a matt finish; colours can be chosen freely. | |
| Heating #1 | Electric radiator | 2 |
| Heating #2 | Electric tubular radiator | 1 |
| Heating #3 | Air conditioning with heating function | 1 |
| Ventilation #1 | Manual ventilation grilles | 3 |
| Separate room #1 | Bedroom: with a partition wall and a standard interior door (70 cm). |
Facilities
Options & Surcharges
Optional extras
- Bathroom: Premium (vinyl tiles and premium fittings) + €3,000 net
- L-shaped kitchen: two additional 60-cm wall and base units, oven and dishwasher + €2,800 net
Wall/roof/floor thickness
- 12 cm + €5,000 net
- 16 cm + €7,200 net
Façade
- Composite slats across the entire façade + €5,600 (net)
- Composite decking combined with standing seam sheet metal across the entire façade + €4,900 (excl. VAT)
- Electric aluminium roller shutters for doors and windows + €4,900 (excl. VAT)
- Surcharge for triple-glazed windows with thermally optimised frame profiles: + €9,100 (net)
Request a quote
Your enquiry regarding: Aurea – 900 × 300 + 400 × 300 cm
We usually get back to you within 1–2 working days.
€49,900 net€59,381 incl. 19 % VAT.Request a quote
